Beschreibung

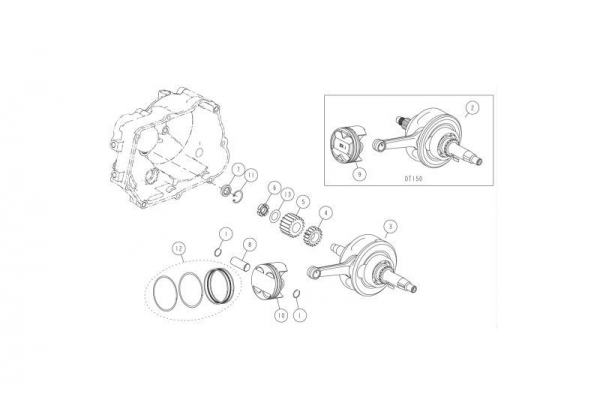

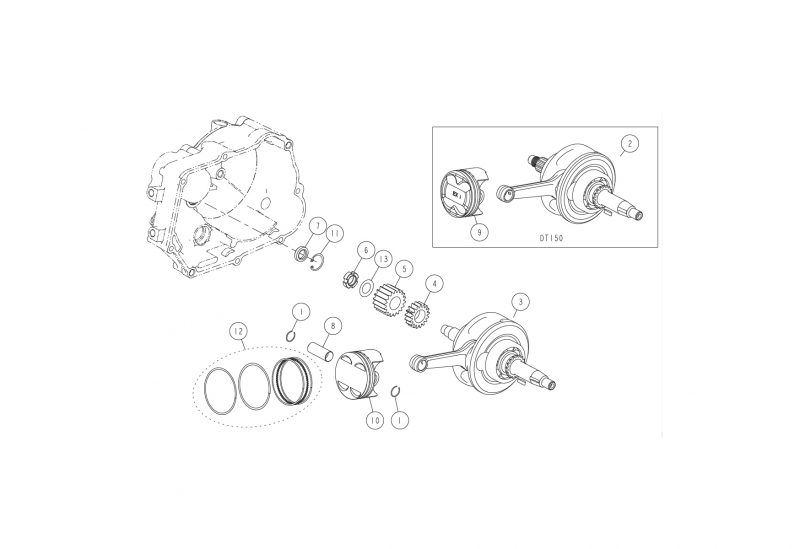

| SEQ # | PART # | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 86453 | CLIP, PIN PIS TON | 2 |
| 2 | 86381 | CRANKSHAFT ASSY DT150 FSM,FDX 49.6mm | 1 |
| 3 | 86620 | CRANKSHAFT ASSY DT190 FSM,FDX 62mm | 1 |
| 3 | 80601 | CRANK SHAFT ASSY DT190 SYS,SYH 55.5mm | 1 |
| 3 | 89144 | CRANK SHAFT ASSY DT190 62mm 5 Speed | 1 |
| 4 | 86383 | GEAR, OIL PUMP DRIVE | 1 |
| 5 | 86415 | GEAR, PRIMARY DRIVE | 1 |
| 6 | 83768 | NUT, SMALL M14 | 1 |
| 7 | 86443 | OIL SEAL, Ø12xØ20x5t | 1 |
| 8 | 86379 | PIN, PISTON Ø14 FSM,FDX 62mm L=36.5 | 1 |
| 8 | 87978 | PIN, PISTON Ø14 SYS,SYH 66mm L=39.0 | 1 |
| 9 | 86378 | PISTON DT150/160 FSM,FDX 62mm | 1 |
| 10 | 86621 | PISTON DT190 FSM,FDX 62mm | 1 |
| 10 | 80316 | PISTON DT190 SYS,SYH 66mm | 1 |
| 11 | 86462 | RETAINING RING, RTWN22 | 1 |
| 12 | 86380 | RING SET, PISTON FSM,FDX 62mm | 1 |
| 12 | 87977 | RING SET, PISTON SYS,SYH 66mm | 1 |
| 13 | 86411 | WASHER, SPRING | 1 |
